Cluster of Motorcycle
Cluster of Motorcycle has actual case and a wide range of products, and can provide customers with the best solutions.
Please see below for product information.
Description
CLIT05-WS
- 5” High brightness LCD display
- Round shape design for rider style
- Auto dimming design
- Supporting ADAS signal fusion
- Independent LED Indicator
- Supporting diversity accessor
.jpg)
Cluster Features
- Start-up animation
- Battery status, temperature
- Current vehicle speed
- Gear (R/D/N)
- Lamp
- Left/ Right turn
- High/ Low beam head lamp
- Mileage / Trip / Remaining driving range
- Service indicator
- Bluetooth connected status
- Charging status
- Warming message
- Multi-languages
Value-added Function (Optional)
- ADAS Service
- BSD (Radar sensor)
- Front & Rear DVR
- AVAS (Acoustic vehicle alert system)
- Smart phone application (3rd APP)
- Turn by Turn Navigation
- Missing call
- Cluster menu control
- Screen mirroring
- Personalization setting

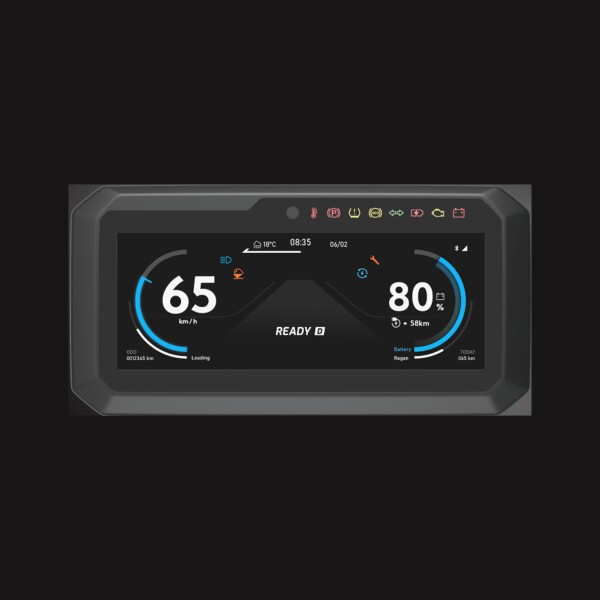

CLIT07-WS
- 5, 7, 10.25” High brightness LCD display with auto dimming
- Smartphone screen mirroring
- Smartphone application
- Fast Startup
- Bluetooth, Wi-Fi connectivity
- Audio-out, video-in CVBS, AHD, TVI
- lndependent LED Indicator
CLIT10-WS
- 10.25” High brightness LCD display
- SoC platform
- Auto dimming design
- Signal fusion: Camera, T-Box, Sensor
- Connectivity: Bluetooth & Wi-Fi
- lnterface: CANBUS & UART
- lP67 design for harsh environment
.jpg)
Cluster Features
- Start-up animation
- Current vehicle speed
- Tell-tale indicator
- Lamp
- Left/Right turn
- High/Low beam
- Mileage
- Service timing light
- Smart key
- Warning messages
- Temperature
- CVBS in
- Clock
- Battery
- Gear (D/N/R)
- Multi-languages
Value-added Function (Optional)
- ADAS Service
- BSD (Radar sensor)
- Front & Rear DVR
- AVAS (Acoustic vehicle alert system)
- Smart phone application (3rd APP)
- Turn by Turn Navigation
- Missing call
- Cluster menu control
- Screen mirroring
- Personalization setting
Specifications
| Description | .jpg) |
.jpg) |
.jpg) |
CLIT05-WS |
CLIT07-WS |
CLIT10-WS |
|
| Panel size | 5-inch LCD | 7-inch LCD [Optional: 5”, 10.25”] | 10inch LCD |
| Panel luminance | 800 nits | 800 nits | 800 nits |
| Processor | Dual ARM9 + RISC, embedded 64MB RAM | Dual ARM9 + RISC, embedded 64MB RAM | Dual ARM9 800MHz, Dual RISC 300MHz |
| Micro Control Unit | Cortex M0 | Cortex M0 | Cortex M0 |
| Communication | CANBUS | CANBUS 2.0 A/B, Speaker Out, Video-in, Manual Keys | CANBUS 2.0 A/B, Speaker Out, Video-in, Manual Keys |
| Connectivity | Bluetooth | Bluetooth 4.2/ Wi-Fi 2.4GHz & 5 GHz | Bluetooth & Wi-Fi |
| Working voltage | DC 9V ~ 16V | DC 9V ~ 16V | DC 9V ~ 16V |
| Quiescent current | ≦ 1mA | ≦ 1mA | ≦ 1mA |
| Independent warning light | LED indicators | LED indicators | LED indicators |
| Video input | CVBS | CVBS, AHD, TVI | CVBS, AHD, TVI |
| Light sensor | YES | YES [day/night] | YES [day/night] |
| Operating temperature | -20℃ ~70℃ (+32℉~158℉) | -20℃ ~70℃ (+32℉~158℉) | -20℃ ~70℃ (+32℉~158℉) |
| Storage temperature | -30℃ ~ 85℃ (-22℉~185℉) | -30℃ ~ 85℃ (-22℉~185℉) | -30℃ ~ 85℃ (-22℉~185℉) |
| Enclosure rating | IP66 | IP66 | IP66 |
| Operation System | RTOS | RTOS | RTOS |
| Installation | Mounting bracket | Mounting bracket/ Build-in design | Mounting bracket |
| Supported video codec format | H.264 | H.264 | H.264 |
| Image resolution | 432*432 pixels | 800*480 pixels | 1280 x 480 pixels |
| FW update | CANBUS | CANBUS | CANBUS |
| Supporting Video input | Yes | Yes | Yes |
| Supporting accessory | Camera, Sensor, T-Box, Mirror, Navigation | DVR, Camera, Sensor, T-Box, Mirror, Navigation | DVR, Camera, Sensor, T-Box, Mirror, Navigation |
